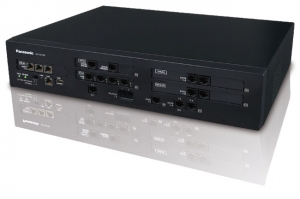

KX-NS700
KX-NS700 Êàïàöèòåò
Maximum Trunks / IP Connections
| Preinstalled | KX-NS700 | With 1 KX-NS720 |
With 2 KX-NS720 |
With 3 KX-NS720 |
|||
| Total Number of Trunks (Legacy+IP) |
0 ch | 102 ch | 138 ch | 174 ch | 210 ch | ||
| Legacy | 0 ch | 38 ch | 74 ch | 110 ch | 146 ch | ||
| BRI | 0 ch | 16 ch | 32 ch | 48 ch | 64 ch | ||
| PRI30 | 0 ch | 30 ch | 60 ch | 90 ch | 120 ch | ||
| E1 | 0 ch | 30 ch | 60 ch | 90 ch | 120 ch | ||
| Analogue | 0 lines | 12 lines | 24 lines | 36 lines | 48 lines | ||
| IP | 0 ch | 64 ch | 64 ch | 64 ch | 64 ch | ||
| H.323 | 0 ch | 32 ch | 32 ch | 32 ch | 32 ch | ||
| SIP | 0 ch | 64 ch | 64 ch | 64 ch | 64 ch | ||
Maximum Terminal Equipment
| Type | Preinstalled | KX-NS700 | With 1 KX-NS720 |
With 2 KX-NS720 |
With 3 KX-NS720 |
||
| Extensions (Legacy+IP) (DXDP*¹) |
6 | 166 (168) | 198 (208) | 230 (248) | 262 (288) | ||
| Legacy (DXDP*¹) | 6 | 38 (40) | 70 (80) | 102 (120) | 134 (160) | ||
| SLT | 4 | 36 | 68 | 100 | 132 | ||
| DPT (DXDP*¹) | 2 | 34 (36) | 66 (76) | 98 (116) | 130 (156) | ||
| APT | 0 | 8 | 16 | 24 | 32 | ||
| IP | 0 | 128 | 128 | 128 | 128 | ||
| IP-PT*² | 0 | 128 | 128 | 128 | 128 | ||
| SIP*³ | 0 | 128 | 128 | 128 | 128 | ||
| DSS Console | 2 | 8 | 8 | 8 | 8 | ||
| CS | 2 | 40 | 48 | 56 | 64 | ||
| DPT-CS (2 ch) | 2 ch | 8 ch | 16 ch | 24 ch | 32 ch | ||
| DPT-CS (8 ch) | 0 ch | 4 ch | 8 ch | 12 ch | 16 ch | ||
| IP-CS | 0 | 32 | 32 | 32 | 32 | ||
| PS | 128 | 128 | 128 | 128 | 128 | ||
| VM | |||||||
| ESVM | 2 ch | 2 ch | 2 ch | 2 ch | 2 ch | ||
| Built-in UM | 0 ch | 24 ch | 24 ch | 24 ch | 24 ch | ||
| TVM Unit | 2 | 2 | 2 | 2 | 2 | ||
| Doorphone | 0 | 2 | 4 | 6 | 8 | ||
| Door Oppener | 0 | 2 | 4 | 6 | 8 | ||
| External Sensor | 0 | 2 | 4 | 6 | 8 | ||
*¹ When Digital XDP is used.
*² KX-NT500/300 Series, KX-NT265 (software version 2.0 or later only).
