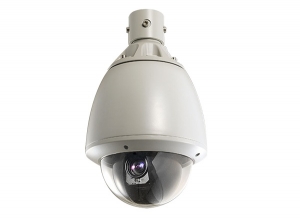

FDMO-D1IP-36X/35X/22X/18X Outdoor IP Speed Dome
Технически параметри:
| Specification / Models | FDMO-D1IP-36 | FDMO-D1IP-F35X | FDMO-D1IP-22X | FDMO-D1IP-18X |
| Image Sensor | 1/4 | 1/4" EXview HAD CCD | 1/3“ SONY EXview HAD CCD II (Effio-E) |
1/4" EXview HAD CCD |
| Optical Lens | 36x (f= 3.4-122.4mm / F= 1.6-4.5) |
35x (f= 3.6-126mm / F= 1.6-4.5) |
22x (f=3.95~85.8mm / F=1.6-F3.7) |
18x (f=4.1~73.8mm / F=1.4-3.0) |
| Horizontal rsoluetion | 550TV lines | 550 TV lines | 650 TV lines | 550 TV lines |
| System Platform | TI DM365 SoC CPU; Linux 2.6 Embedded OS | TI DM365 SoC CPU; Linux 2.6 Embedded OS | TI DM365 SoC CPU; Linux 2.6 Embedded OS | TI DM365 SoC CPU; Linux 2.6 Embedded OS |
| Video Compression | 0.5M~6M bits/sec (CBR/VBR/CBVR) H.264 MP/BP, M-JPEG | 0.5M~6M bits/sec (CBR/VBR/CBVR) H.264 MP/BP, M-JPEG | 0.5M~6M bits/sec (CBR/VBR/CBVR) H.264 MP/BP, M-JPEG | 0.5M~6M bits/sec (CBR/VBR/CBVR) H.264 MP/BP, M-JPEG |
| Audio Compress | AAC/G.711 | AAC/G.711 | AAC/G.711 | AAC/G.711 |
| Video Streainmg | H.264 BP/H.264 MP/M-JPEG mode |
H.264 BP/H.264 MP/M-JPEG mode |
H.264 BP/H.264 MP/M-JPEG mode |
H.264 BP/H.264 MP/M-JPEG mode |
| Resolution | Full D1, CIF, QCIF | Full D1, CIF, QCIF | Full D1, CIF, QCIF | Full D1, CIF, QCIF |
| Frame Rate | 25/30 fps (adjustable) @ Full D1 |
25/30 fps (adjustable) @ Full D1 |
25/30 fps (adjustable) @ Full D1 |
25/30 fps (adjustable) @ Full D1 |
| Protocol | HTTP, HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, SNMP, RTSP, RTP/RTCP, Bonjour, UPnP. | HTTP, HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, SNMP, RTSP, RTP/RTCP, Bonjour, UPnP. | HTTP, HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, SNMP, RTSP, RTP/RTCP, Bonjour, UPnP. | HTTP, HTTPS, TCP/ IP,IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, SNMP, RTSP, RTP/RTCP, Bonjour, UPnP. |
| Overlay | Text , Time stamp | Text , Time stamp | Text , Time stamp | Text , Time stamp |
| Interface | 10BASE-T/100 BASE-TX; Wi-Fi (Option) | 10BASE-T/100 BASE-TX; Wi-Fi (Option) | 10BASE-T/100 BASE-TX; Wi-Fi (Option) | 10BASE-T/100 BASE-TX; Wi-Fi (Option) |
| I/O Port | Audio in/out; Alarm in/out, USB port for storage or Wi-Fi/3G modem; RJ-45 |
Audio in/out; Alarm in/out, USB port for storage or Wi-Fi/3G modem; RJ-45 |
Audio in/out; Alarm in/out, USB port for storage or Wi-Fi/3G modem; RJ-45 |
Audio in/out; Alarm in/out, USB port for storage or Wi-Fi/3G modem; RJ-45 |
| Browse | Internet Explorer 6.0 above | Internet Explorer 6.0 above | Internet Explorer 6.0 above |
Internet Explorer 6.0 above |
| S/N | More than 50dB (AGC Off) |
More than 48dB | More than 48dB | More than 48dB |
| Digital Zoom | 12 X | 16 X | 10 X | 12 X |
| Minimum Illumination |
0.01 Lux @ F1.6 ( Color); |
0.5 lx. (F1.6, Color) 0.01 lx. (F1.6, B/W) |
1 lx. (F1.4, Color) 0.01 lx (B/W; ESSM) |
0.4 lx (F1.4; 50IRE) |
| WDR | Yes | No | No | No |
| Day/Night | Auto /Color / B/W (IR Cut) |
Auto /Color / B/W (IR Cut) |
Auto /Color / B/W (IR Cut) |
Auto /Color / B/W (IR Cut) |
| Backlight Compensation | Multi / Center / Off | Multi / Center / Off | Multi / Center / Off | Multi / Center / Off |
| Focus | Auto / One-push AF / Menu | Auto / One-push AF / Menu | Auto / One-push AF / Menu |
Auto / One-push AF / Menu |
| AGC | Low / Normal / Middle / High / Off | Low / Normal / Middle / High / Off | Low / Normal / Middle / High / Off | Low / Normal / Middle / High / Off |
| White Balance | ATW / Menu / Push-look / Indoor / Outdoor / Florescent | ATW / Menu / Push-look / Indoor / Outdoor / Florescent | ATW / Menu / Push-look / Indoor / Outdoor / Florescent | ATW / Menu / Push-look / Indoor / Outdoor / Florescent |
| Shutter Speed | 1/1 to 1/10,000s, 22 steps |
NTSC: 1/60~1/10,000 second PAL: 1/50~1/10,000 second | NTSC: 1/60~1/10,000 second PAL: 1/50~1/10,000 second | NTSC: 1/60~1/10,000 second PAL: 1/50~1/10,000 second |
| Image Freeze | Yes | No | No | No |
| Image Stabilisation | Yes | No | No | No |
| Privacy Masking | On/Off; (8 masks per view/24 masks presets) | No | No | No |
| Motion Detection | Yes | Yes | Yes | Yes |
| Panning Speed | 0°~360 ° /Sec. | 0°~360 ° /Sec. | 0°~360 ° /Sec. | 0°~360 ° /Sec. |
| Horizontal Scan | 360 degree continuously | 360 degree continuously | 360 degree continuously | 360 degree continuously |
| Preset | 128 | 128 | 128 | 128 |
| Interface | RS-485; Half-Simplex | RS-485; Half-Simplex | RS-485; Half-Simplex | RS-485; Half-Simplex |
| Baud Rate | 1200 / 2400 / 4800 / 9600 BPS |
1200 / 2400 / 4800 / 9600 BPS |
1200 / 2400 / 4800 / 9600 BPS |
1200 / 2400 / 4800 / 9600 BPS |
| Protocol | Pelco P and Pelco D auto detection | Pelco P and Pelco D auto detection | Pelco P and Pelco D auto detection | Pelco P and Pelco D auto detection |
| Housing | Aluminum | Aluminum | Aluminum | Aluminum |
| Mount Type | Embedded Ceiling Mount | Embedded Ceiling Mount | Embedded Ceiling Mount | Embedded Ceiling Mount |
| Weatherproof | IP 66 / Build in Fan & Heater | IP 66 / Build in Fan & Heater | IP 66 / Build in Fan & Heater | IP 66 / Build in Fan & Heater |
| Dimension | 6 inches | 6 inches | 6 inches | 6 inches |
| Power Supply | DC12V/3A | DC12V/3A | DC12V/3A | DC12V/3A |
| Environmental | -35℃~50℃ | -35℃~50℃ | -35℃~50℃ | -35℃~50℃ |
| Weight | 5 Kg | 5 Kg | 5 Kg | 5 Kg |
| Accessories | BWO-27S Short type, Wall Mount Bracket |
BCO-27S Standard ceiling bracket |
BCO-10S Short ceiling bracket |
SP-010PB 90 degree pole bend bracket |
| SP-030TB 30 cm extension tube bracket |
SP-010TB 10 cm extension tube bracket |
SP-019IW Inner wall Corner fix bracket |
SP-019OW Outer wall Corner fix bracket |
|
| SP-018PH Pole holding bracket |
CV-006DR Black Cover |
CV-006SV Silver Cover |
HS-009SS Sun shield housing |
|
